Radon Guard

Quick Overview

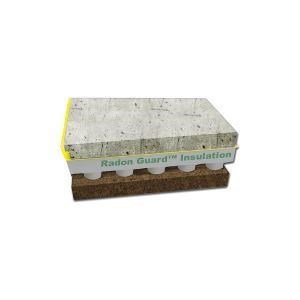

Radon Gas is naturally occurring, and moves up out of the ground into a structure through cracks in the foundation or slab. According to Health Canada, Radon Gas is the second leading cause of lung cancer. New building codes require new construction to have a radon mitigation system in place. Radon Guard® Insulation is a key component for radon mitigation systems and is the code compliant one-to-one replacement for the code-required 100 mm thick layer of granular material. This 2-in-one system both insulates and protects the health of a structure. Manufactured from PlastiSpan HD insulation, Radon Guard has an R-value of 4.04 per inch and compressive strength of 16 psi. Radon Guard® insulation is a patent-pending sub-slab depressurization panel. Radon Guard allows for soil gas removal, insulates the concrete slab, and provides a capillary break between the ground and the air barrier system. CCMC Evaluation Report 13698-R confirms that the interconnected channels on the underside of Radon Guard insulation provide the required means to direct soil gas to a radon gas mitigation system. Available in 3x4 ft, 2 ft high bundles 3.5”, 4”, 4.5”, 5”, 5.5” thicknesses Also available in 20, HD, 25, 30 and 40 psi
